Wood curving vacuum press Intro

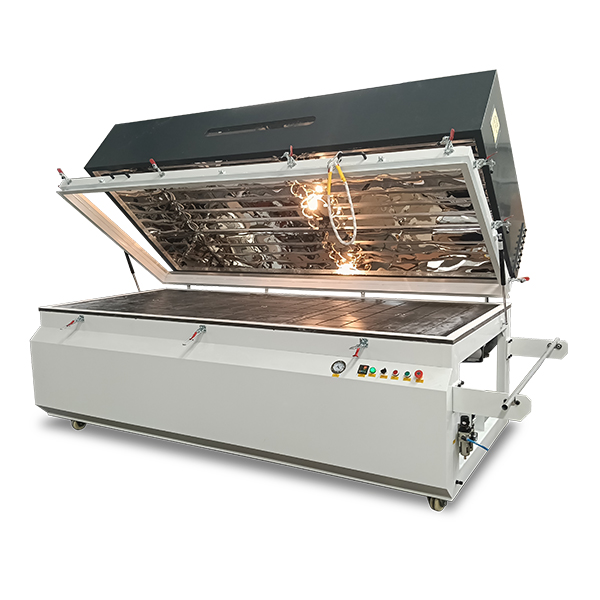

BSF-V Wood curving vacuum press
Working Table:
3000*1300mm [Customizable]
Max.material thickness: 30mm
Max.forming height: 400-500mm
Certification: CE, SGS
Wood curving vacuum press Video
Vacuum Press Details
For Wood Bending
Bend plywood & wood veneers with precision. Ideal for curved furniture & decor.

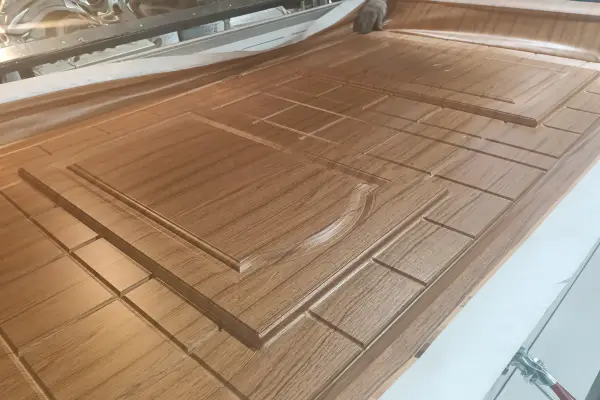

For Laminating
Seamless wood veneering & foil laminating for doors, cabinets & wood panels.

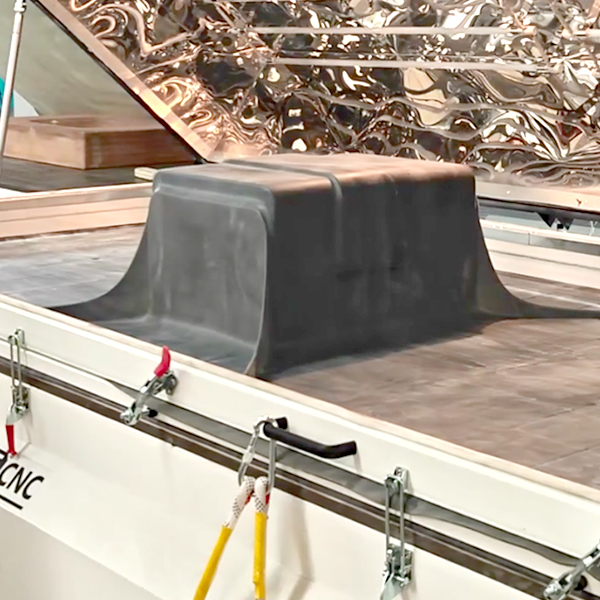

High elastic silicone membrane
The vacuum membrane press system is covered by 2mm thickness silicone membrane with 700% elasticity. Can be using between -40℃-220℃. Maximum forming height could reach 500mm
Heat oven
BSF-V vacuum membrane press is coming with a top oven which is used to drying the glue. The oven has high quality quartz heating tubes, stone wool insulation and designed with mirror flection. Ensure fast heating and energy saving.
Engineer Remote Machine Training
Different from other companies, our engineers will provide machine training to every customer via video call. 100% of our customers can solve their problems in the training.
- Professional Help
- 100% Problem Solved
100% Trust. Visit Our Factory Anytime
- Best After-Sale Service
- Customers Worldwide
Over 10,000 clients in 176 countries trust our CE-certified vacuum former. Feel free to visit us any time. Our factory is always open for you. You can also do the machine training if you need to.
Technical Data
| Model | BSF‑3013V |
|---|---|
| Working table | 3000*1300mm |
| Forming area | 2800*1100mm |
| Oven open style | Automatic open |
| Heating area | 2800*1100mm |
| Max. material thickness | 20mm |
| Max. forming height | 400‑500mm |

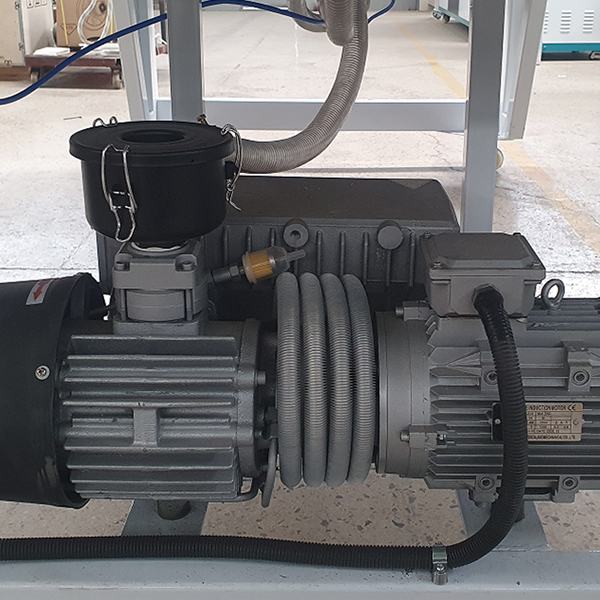

| Vacuum pump | 40m³/H |
| Max. pressure | ‑0.085 |
| Membrane | 2mm thickness silicone membrane |
| Total Power | 22KW |
| Working voltage | 380V/50HZ/3P |
| Dimensions | 3300*1500*1610mm |
| Weight (kgs) | 650KG |
